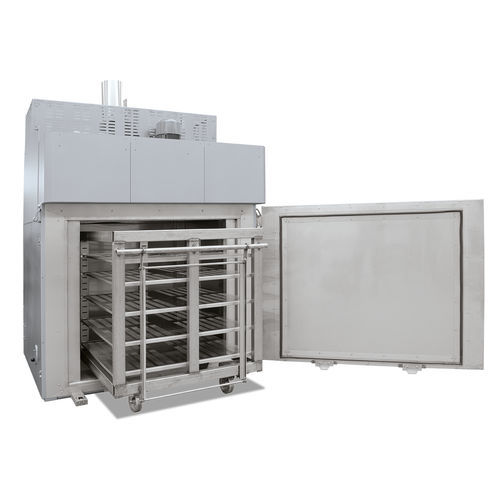

Chamber oven KTR series

dryingheat treatmentelectric

The chamber ovens of the KTR range can be used for complex drying processes and heat treatment of charges to an application temperature of 260 °C. The high-performance air circulation enables optimum temperature uniformity throughout the work space. A wide range of accessories allow the chamber ovens to be modified to meet specific process requirements. Standard Equipment • Electrically heated (via a heating register with integrated chrome steel heating elements) or gas-fired (direct or indirect gas-fired including injection of the hot air into the intake duct) • Temperature uniformity up to +/− 3 °C according to DIN 17052-1 (for design wihout track cutouts) • High-quality mineral wool insulation provides for outer temperatures of < 25 °C above room temperature • Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP) • High air exchange for fast drying processes • Double-wing door for furnaces KTR 2300 and larger • Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load • Controller B400 (5 prgrams with each 4 segments) • Defined application within the constraints of the operating instructions • NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
