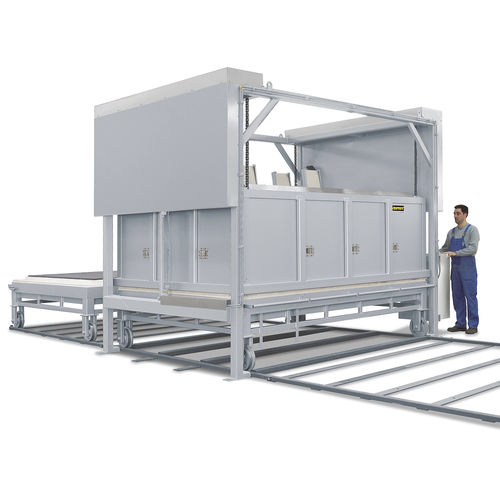

Chamber furnace HG series

electric resistancecontrolled atmospherefor glass working

Nabertherm markets this range of top-hat furnaces for bending and slumping of large glass parts. The standard furnace is equipped with one table running on rails which can be pulled out for easy charging. As accessory an additional table can be integrated, which is charged while the other table is in the furnace. The furnace is heated from the ceiling and from the table. Heating from lid and table 3-zone temperature control (lid-inner circular element, lid-outer circular element, table) for optimal temperature uniformity Table heating can be switched-off for fusing Heating elements on supporting tubes provide for long service life Table heating elements covered by SiC tiles for level stacking support Hood insulated with non-classified fiber materials Table insulated with multi-layer resistant, lightweight refractory bricks Top hat to be opened by overhead crane in floor shop Protection guides for easy top hat opening and closing Manually-operated exhaust air flap Furnace table on fixed chassis for user-friendly charging height (approx. 800 mm) Defined application within the constraints of the operating instructions NTLog for Nabertherm Controller: Recording of process data with USB-flash drive Top hat side heating in case of high top hat dimensions Interchangeable table system on rails, electrically powered on request Electro-hydraulically driven top hat Cooling system Table on wheels for free movement
