Articulated robot SRA series
6-axisspot weldingfloor-mounted

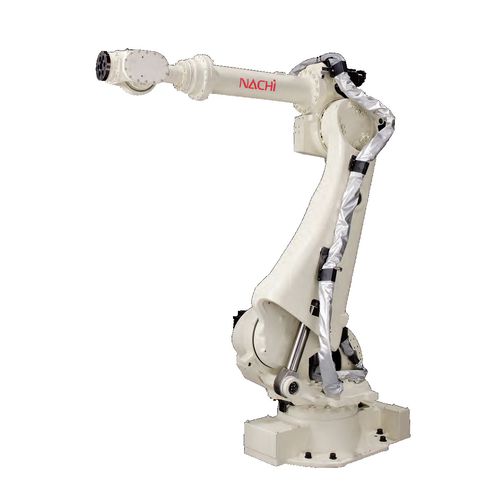

Articulated robot - SRA series - NACHI America - 6-axis / spot welding / floor-mounted
Articulated robot - SRA series - NACHI America - 6-axis / spot welding / floor-mounted
Articulated robot - SRA series - NACHI America - 6-axis / spot welding / floor-mounted - image - 2
Add to favorites
Compare this product


Characteristics

Type
articulated
Number of axes
6-axis
Function
spot welding
Mounting
floor-mounted
Other characteristics
compact
Payload

45 kg
(99.208 lb)

Reach

2,654 mm, 2,674 mm, 2,951 mm, 3,099 mm
(104.49 in, 105.28 in, 116.18 in, 122.01 in)

Repeatability

0.1 mm, 0.15 mm
(0.0039 in, 0.0059 in)

Operating temperature

Min.: 0 °C
(32 °F)

Max.: 45 °C
(113 °F)

Weight

960 kg, 980 kg, 985 kg, 990 kg
(2,116.4 lb, 2,160.5 lb, 2,171.6 lb, 2,182.6 lb)

Description

World Class Speed Robot Robot motion makes minimum cycle times unbeatable. Light weight and high rigidity design results in high acceleration and minimum vibration. Maximum speed on all axes reduces move time. All this provides dramatically improved productivity. SRA robot ease of use improves the bottom line Improved drives and motors for accurate positioning and better repeatability. Slim and compact design allows closer installation in less floor space. Maintainability is improved with easier inspections and parts replacement. Improved energy efficiency Power consumption reduced 15% from existing models by reducing the robot's weight by 20% and using cutting edge motor drive controls. Controller FD11
