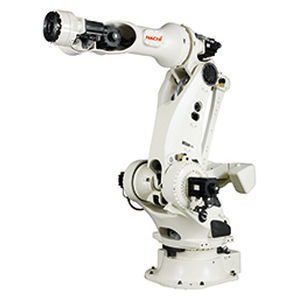

Articulated robot MC600-016-axisfloor-mountedfor heavy loads
Add to favorites
Compare this product
Characteristics
- Type
- articulated
- Number of axes
- 6-axis
- Mounting
- floor-mounted
- Application domain
- for heavy loads
- Other characteristics
- compact, high-speed
- Payload
Min.: 50 kg
(110.231 lb)Max.: 600 kg
(1,322.774 lb)- Reach
3,717 mm
(146.34 in)- Repeatability
0.3 mm
(0.0118 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 45 °C
(113 °F)- Weight
2,850 kg
(6,283.2 lb)
Description
Heavy-load bearing robots with hollow wrists
Wrist with hollow construction
Compact and easy routing for cables and hoses.
Improved reliability for ancillary cables and hoses.
Strong wrist
Supports large-scale guns and workpieces with substantial wrist torques.
Top of their class wrist torques.
(1.8 times the wrist capacity compared to our conventional machines)
High-speed operations
Top operating performance in their class.
Improved applicability
Large operating envelope to easily replace existing equipment.
Signal wires for moving applications are standard equipment
Air 2 system, signal wires with 40 conductors, DeviceNet cable, LAN cable.
