Three-phase motor NM
inductionIP23squirrel cage

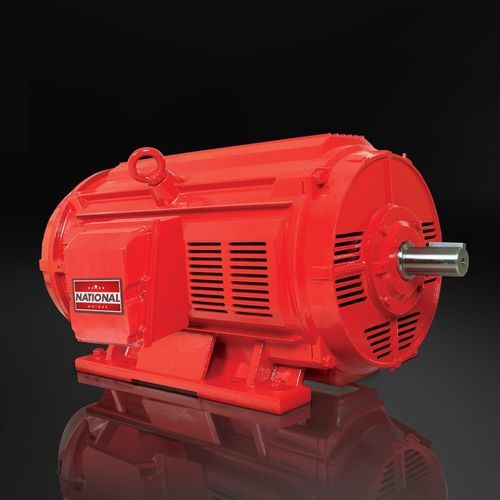

Three-phase motor - NM - naffco - induction / IP23 / squirrel cage
Three-phase motor - NM - naffco - induction / IP23 / squirrel cage
Add to favorites
Compare this product


Characteristics

AC/DC
three-phase
Type
induction
Protection class
IP23
Configuration
squirrel cage, cast iron
Number of poles
4-pole, 2-pole
Applications
for pump
Other characteristics
low-voltage, NEMA, UL certified
Power

Min.: 10 ch
(10 hp)

Max.: 500 ch
(500 hp)

Rotational speed

Min.: 1,440 rpm
(9,047.79 rad.min-1)

Max.: 2,985 rpm
(18,755.31 rad.min-1)

Operating temperature

50 °C
(122 °F)

Description

National Motors’ NM Series consists of motors designed for fire pump applications as specified in NFPA 20. These three-phase horizontal low-voltage squirrel-cage medium induction motors are constructed and manufactured as per the requirements of NEMA MG 1 standard Design B. With Open Drip Proof enclosures, they provide the best possible ventilation suitable for environments having minimal airborne contaminants and better cooling that contribute to the most efficient performance available from these motors. National Motor’s also offers open drip proof motors that are designed and manufactured to meet or exceed the latest IEC standards where UL certification are not mandatory. • NEMA Energy efficient design • Performance As per NFPA 20 • 3 Phase • 15 Service Factor • Re-greaseable Ball Bearing • Rolled Steel & Cast Iron construction frame. • UL File No. EX26863 • Stainless Steel name plate • RAL 3000 Standard red painted. • IP23 Degree of Protection • Altitude rating of 1000 meters above sea level
