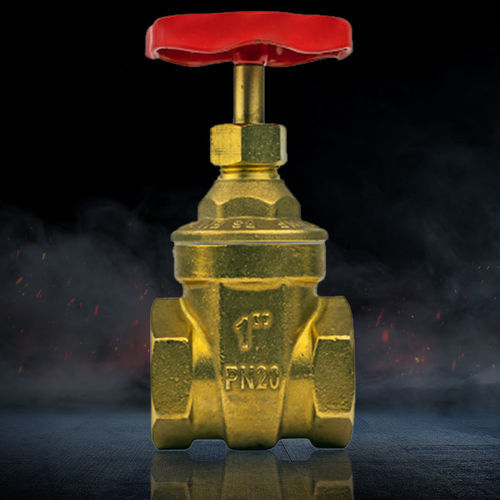

Gate valve NFGV-25manualfor waterthreaded
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- manual
- Media
- for water
- Body
- threaded, brass
- Applications
- for fire safety applications
- Other characteristics
- ISO, rising stem
- DN
1 in
- Pressure
20 bar
(290.1 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 66 °C
(151 °F)
Description
NAFFCO Gate Valve is usually installed in Dry riser inlets and Fire Hose reel assembly where unauthorized operation has to be avoided.A typical application of this valve is installing these at inlet pipe to the hose reel where it can be opened for maintenance or fire safety department and Dry riser assembly for draining purpose.
• Solid Wedge, non rising stem, screwed in bonnet.
• Valves are manufactured in accordance to BS 12288 series B.
• Pressure rating is PN 20.
• End connection is BSPT threaded to ISO 7-1.
• Material: Brass
