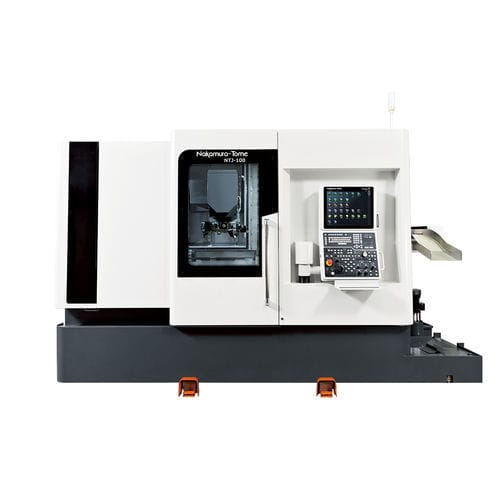

CNC milling-turning center NTJ-100horizontalY-axisdrilling
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Type
- horizontal
- Other characteristics
- with turret, drilling, cutting, Y-axis
- Diameter
175 mm
(6.89 in)- Y travel
80 mm
(3.15 in)
Description
Turret B-axis Swiveling Range 182°
In Addition to Angular Drilling and End Milling, Arbitrary Contour-Milling Can Be Performed with Standard Driven-Tool Holders
Upper turret with a B-axis, having a swiveling range of 182°.
Up to 48 tool stations! Reduce setup time with permanent tooling.
Simultaneous cutting with upper and lower tools on L/R opposed-spindles ensures balanced processes and faster cycle times.
Both upper and lower turrets have milling and Y-axes.
Upper Y-axis travel is 80 mm. Lower Y-axis travel is 65 mm.
Milling motors have 7.1/2.2kW power and 6,000min-1 max. speed.
