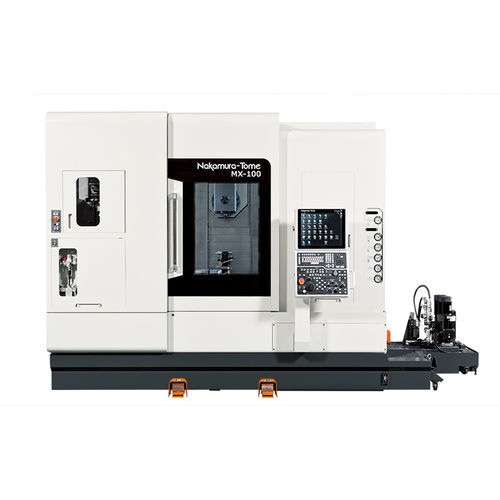

CNC turning-milling center MX-100

horizontalverticalcompact

Tool Spindle, ATC and Lower-turret, CNC Multitasking Machine with Opposed Twin-spindles. Maximum Tool spindle speed 12,000min-1 (op. 20,000min-1). Distance between spindles 1,000mm. Y-axis stroke 210mm (±105mm). B-axis swiveling range 190° (±95°). Number of tools for ATC magazine 36 pcs. (op. 48 ,72). twin spindle , Save the cycle time by Simultaneous operation with Upper and Lower tools. Faster cycle times thanks to simultaneous machining with upper and lower tools on L/R opposed twin-spindles. The slides, having a vertical column structure, are mounted on a high rigidity horizontal machine bed with low gravity design. Compact Multitasking Machine with ATC Floor space 4,350mm×2,795mm. Equipped with Built-in Spindles. Can be equipped with 6 ~ 8-inch chucks.
