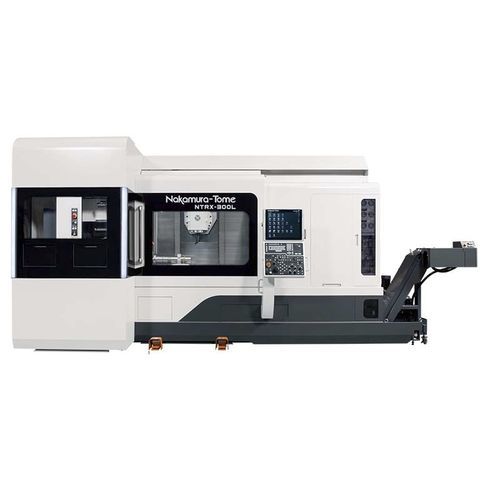

CNC turning-milling center NTRX-300L

horizontalspindle

Equipped with The Best Options for Long Parts Machining. High Rigidity Multitasking Machine with ATC Available with either right hand side spindle or tailstock. Distance between spindles 1,850mm. B-axis swiveling range 240° (±120°). Number of tools for ATC magazine 40pcs (op. 60, 80, 120). The slides, having a vertical column structure, are mounted on a high rigidity horizontal machine bed with low gravity design. ※Image shown here is of a R-Spindle + Steady Rest Specifications.(op.) Long Tool ATC is optionally available. Available for up to three long tools. (Max. Dia. X length = Φ65mm x 450mm) NC Steady rest is optionally available. User friendly Large window to better see the machining area Shorter distance from the machine front side to the spindle center, for easy set up.
