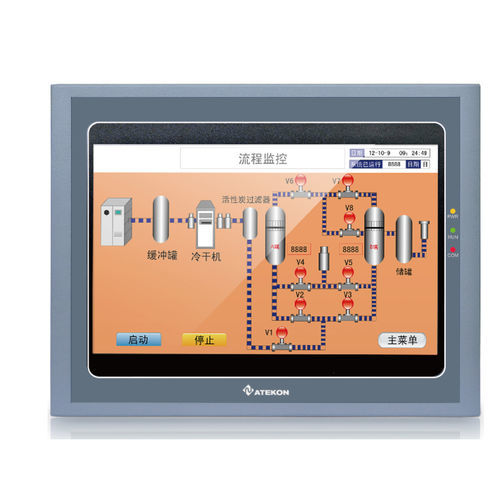

LED display NA2121 series

with touch screen800 x 60012.1"

Dimensions (mm) 340×256×54 Hole size (mm) 330×246 Weight (g) 2160 Working temperature 0℃～55℃(No freezing) Working environment humidity 5～95%RH(No condensation) Shockproof 10～25HZ(2G/30 minutes in XYZ direction) Shell material Engineering plastics ABS+PC Power consumption (W) 7 Power supply DC24V(±15%) Static level Level 4±8KV Contrast 450 : 1 Brightness 300cd/m2 Touch panel 4-wire high-precision touchpad Display color 260000 Backlit panel LED RAM 128MB DDR3 CPU Cortex A8 600MHz Storage 128MB FLASH USB download port YES USB flash drive YES Serial interface COM1/COM2:RS232,RS422,RS485 FCC compatibility Comply with FCC, Class A Pressure test 1000V AC,1 minute CE certification Complies with EN55032 and EN55035 standards Protection level IP65(Front panel) Configuration Software NATouch
