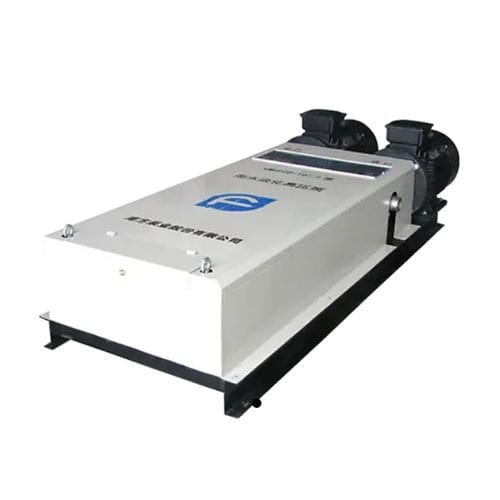

Centrifugal pump VMHPfor seawaterelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for seawater
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial
- Applications
- high-pressure
- Material
- stainless steel
- Voltage
- 380 V
- Other characteristics
- axial, high-flow, high-reliability
- Flow
Max.: 540 m³/h
(19,069.92003 ft³/h)Min.: 5 m³/h
(176.57333 ft³/h)- Pressure
75 bar
(1,087.783 psi)- Head
Max.: 725 m
(2378'07" )Min.: 533 m
(1748'08" )- Fluid temperature
40 °C
(104 °F)
Description
The impeller is installée! back to back to balance the huge axial force.
The mechanical seal grinding block is made of seawater résistant material.
Spécial design suitable for high voltage use.
Features and advantages
Simple structure and good reliability.
Working conditions
Seawater
Altitude: up to 1000m
Inlet&outlet connection
VMHP20,40: PJE connection
VMHP130,210,520: Flange connection
TECHNICAL DATA
Temp : ambient temperature
APPLICATIONS
RO seawater desalination
