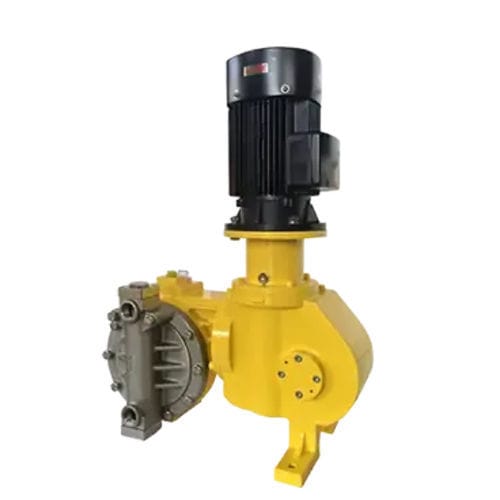

Diaphragm pump RX

waterhydraulic motorstationary

The worm gear and worm structure is used to decelerate to ensure the continuous and stable work of the mechanical transmission parts; the worm gear and eccentricity are installed in the form of assembly to ensure accurate stroke distance and easy to disassemble and maintain at the same time. The design and pipeline parallel type one-way valve interface is optional, in the one-way valve maintenance, the one-way valve can be removed separately, there is no need to disassemble the pipeline at the same time. Hydraulic drive diaphragm, diaphragm life longer. The built-in adjustable safety valve fully protects the diaphragm and pump head components to avoid damage due to overpressure. under normal circumstances, the outlet pipeline is not allowed to install safety valves. Using oil bath lubrication, the driving parts have a long working life. Flow régulation can be realized either in downtime or in running State. Optional pressure double diaphragm détection (local / remote) alarm. Frequency conversion controller, receive external control signal, adjust stroke speed, input signal: 4-20mA analog signal. Motor controller: control the three-phase motor in "on / stop" mode and adjust the output flow FEATURES AND ADVANTAGES Using oil bath lubrication, the driving parts have a long working life. Flow régulation can be realized either in downtime or in running State. Optional pressure double diaphragm détection (local / remote) alarm. TECHNICAL DATA Régulation ratio: 10:1 Steady State accuracy: ± 1% Suction lifting height: up to 2m water column APPLICATIONS environmental protection petrochemical chemical power metallurgy medicine food other fields MATERIAL 316SS Spécial material
