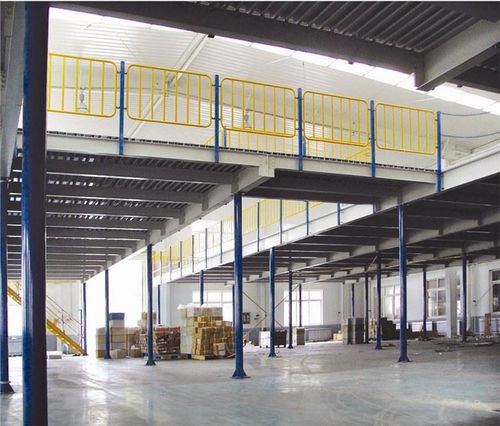

Warehouse industrial mezzanine

indoor

The Warehouse Mezzanine is also called the mezzanine platform, the modern steel structure mezzanine has various forms and functions, the biggest feature of its structure is the fully assembled structure, flexible design, and it is widely used in warehouse storage. Composition Usually consists of floor decking, primary and secondary beams, columns, inter-column supports, ladders and handrail. The layout of the mezzanine structure 1. Meet the requirements of process production and operation, and ensure the clearance of passage and operation. Generally, the clear height of passage should not be less than 1.8m, protective railings should be set around the mezzanine, and the height of the railings is generally 1m. When the height of the platform is greater than 2M, a kick plate with a height of 100-150mm should be set under the protective railing. The mezzanine should be provided with a ladder for up and down passage, and the width of the ladder should not be less than 600mm. 2. When determining the plane size, elevation, beam grid and column network layout of the platform structure, in addition to meeting the requirements for use, the layout of beams and columns should also consider the equipment load on the platform and the location of other larger concentrated loads and the location of large-diameter industrial pipelines. Hanging, etc. 3. The layout of the platform structure should be economical and reasonable, and the force transmission should be direct and clear. The layout of the beam grid should be adapted to its span. When the span of the beam is large, the spacing should also be increased.
