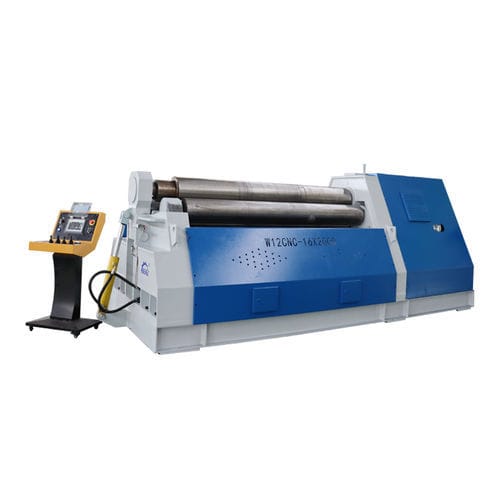

CNC rolling machine BEKE

hydraulic

BEKE hydraulic plate Bender is completely European design, streamlined appearance, the frame of our machine is manufactured, welded steel (ST-52). Rolls, materials, and bearings used in production are of European quality. Also, the torque limit of the machine is very high. CNC playback and CNC graphic control systems are available as optional accessories. The main structure of the equipment includes an upper roller, lower roller, horizontal movement mechanism, supporting mechanism, main drive mechanism, downturn system, left and right machine frame, chassis and balance mechanism, and hydraulic and electrical control systems. The model MH has both the upper and the lower roll powered with hydraulic motor and planetary gear box. High precision pre-bending, freely set up the width of the plate. Upper roller presses the plate end for pre-bending. Upper roller likes drum with collaboration of carrier roller permit continual bending of any thickness of plate. Safe work, fixed two down roller, upper roller does horizontal and vertical movement, and the plate don’t move during upper roller moving. Unitary structure, convenient to move the whole machine as machine has a hardy under the pan. No need to anchor bolt. Different use has different control way, like top numerical control and below numerical control. Through exclusive technology, BEKE develop cones as easily as competitive machines can develop cylinders. And it eliminates scarring on the surface of shell or roll and also eliminates, in most cases, the need for grinding the lamination (bullnosing) on the minor diameter edge.
