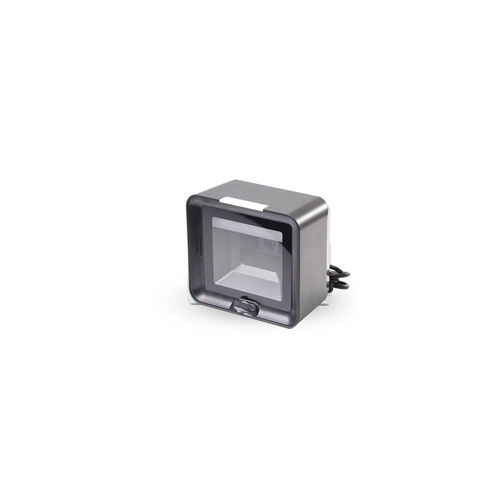

Fixed barcode reader ES3000

2DPOSembedded

Embedded Barcode 1d 2d Desktop Reader For Retail Sound volume adjustable Applicable to all kinds of new retail POS system for reading printing and screen barcodes at the same time Easily installed into other devices or used as an independent scanner Details Platform / Embedded Barcode Reader ES3000 Features: ◆Adjustable sound volume ◆Applicable to all kinds of new retail POS system for reading printing and screen barcodes at the same time ◆Easily to be installed into other devices or used as an independent scanner Physical Characteristics Dimensions: 137mmx152mmx84mm Weight: 414.5g Operating Voltage: 5V Starting Current: 440mA Stand-by Current: 185mA Work Current: 440mA Performance Parameters Image Sensor: 1280 pixels(H)x1024 pixels(V) Light Source: Warm yellow LED Angular Field of View: 60°(H) ，48°(V) Roll /Pitch /Yaw: 360°/ ±65°/ ±65° Print Contrast: 20% - the minimum reflection difference Interface Support: USB Motion Tolerance: 2.5m/s Decode Capability 1D Barcode: Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、 Code 93、Straight 2 of 5 Industrial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11、 Code 128、GS1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post. 2D Barcode: DOT Code, Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、Data Matrix、MaxiCode、Aztec、HANXIN. User Environment Operating Temperature: -20°C~60°C Storage Temperature: -30℃~70℃ Humidity: 5%～95%（relative humidity, non-condensing）
