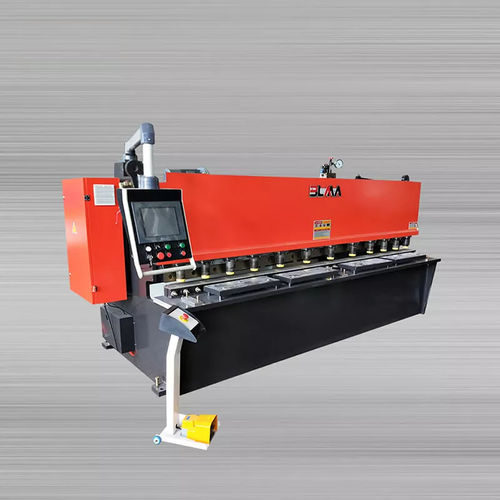

Hydraulic shear QC12K/Y seriesfor metal
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Application
- for metal
- Plate thickness
Min.: 4 mm
(0.16 in)Max.: 25 mm
(0.98 in)- Working length
2,500 mm, 3,200 mm, 4,000 mm, 5,000 mm, 6,000 mm
(98.43 in, 125.98 in, 157.48 in, 196.85 in, 236.22 in)
Description
QC12KY NC Hydraulic Metal Cutting Shear
Shearing Machine
Accurate backgauge positioning up to 0.01mm
Swing beam shear with Backgauge retraction function
E21S NC Controller with sequence repeat function
Quick blade clearance adjustment with manual handle shank
High quality blades for cutting mild steel,aluminum,stainless steel
Overall welding
Integral welding front workbench and machine body guarantee that there are no seam between
front workbench vertical plate and bilateral vertical plates
Siemens motor
Using Siemens Morto guarantee the machine service life,and reduce the noise when working
Blade clearance adjustment
Ajust the cutting blade gap by motor according to the thickness of plate,which can get better cutting performance
