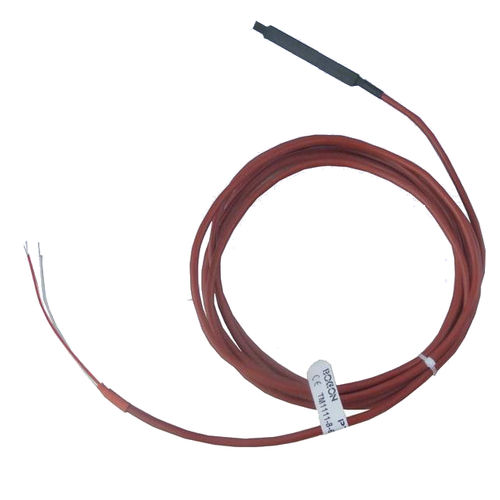

Engine temperature probe TM-1109Pt100RTDPt1000
Add to favorites
Compare this product
Characteristics
- Technology
- Pt100, RTD, Pt1000, Pt500
- Applications
- engine
- Temperature
Min.: -50 °C
(-58 °F)Max.: 180 °C
(356 °F)
Description
The Slot RTD temperature probes are used to measure the temperature of the engine coil. It is mainly used to monitor coil temperature against damage.
Technical data:
Sensor element:Pt100, Pt500, Pt1000 meets IEC 751
Tolerance :Class B: △t=±(0.30 + 0.005 |t| )℃
Class A: △t=±(0.15 + 0.002 |t| )℃
Pressure range：2.5KV or 4KV（optional）
Operating voltage: ≤60V
Operating current：≤1mA
Connecting cable:PTFE(core), Silicone(sheath)
Measuring range:-50℃~+180℃
