High-precision thermometer

resistanceplatinumwithout display

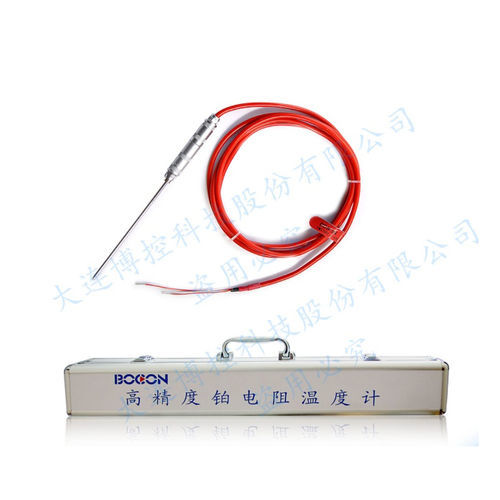

High precision platinum resistance thermometer Application：Energy meter calibrating apparatus. Industrial platinum,copper resistance testing and calibrating apparatus. Supporting the use of high precision measuring equipment for temperature measurement in special occasion. Features： Sensor element：Input Pt100（temperature sensor 3850/3910） Calibration according to ITS-90 Connector：LEMO gold plated Connecting cable：Silicone cable，single 4-wire Technical Parameters： Measuring range：-80~300℃ Tolerance ：Class 1/5B,Class 1/10B Long-term stability ：≤10mK/year Repeatability：≤5mK Self-heating：≤4mK Φ4 ，≤10mK Φ3 Response time: Approx 6s，in water 0.2m/s Protection tube outer diameter： Φ3、Φ4 Fitting length：200mm、 450mm Cable length：2500mm（Other length on request）
