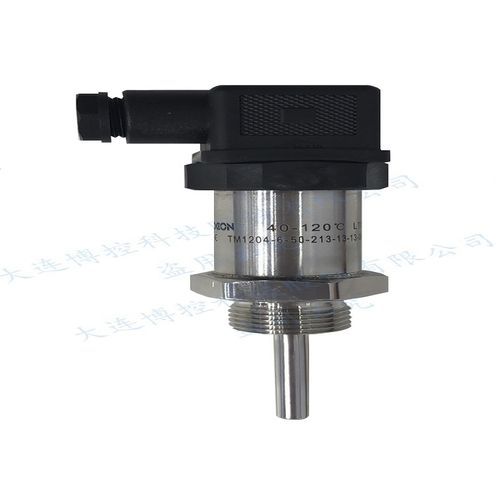

Horsman-joint temperature probe TM1204Pt100RTDPt1000
Add to favorites
Compare this product
Characteristics
- Technology
- Pt100, RTD, Pt1000, Pt500
- Output
- 4-20 mA
- Electrical connection
- M12 connector
- Protection level
- intrinsically safe
- Applications
- for refrigeration circuits, for laboratory freezers, for laboratory refrigerators
- Other characteristics
- with stainless steel tube, 2-wire, elastic contact, Horsman-joint
- Temperature
Max.: 180 °C
(356 °F)Min.: -50 °C
(-58 °F)- Probe diameter
6 mm
(0.2 in)- Response time
10 s
Description
Heat exchanger units, Refrigeration and testing equipments.
Technical data
Protection tube:Stainless steel 304/316
Sensor element:Pt100, Pt500, Pt1000 meets IEC 751
Tolerance :Class B: △t=±(0.30 + 0.005 |t| )℃(standard)
Class A: △t=±(0.15 + 0.002 |t| )℃
Transmitter: Integrated temperature transmitter 24VDC, 4~20mA, 2-wire
Transmitter errors: standard ±0.5% . ±0.2% is optional.
Response time：t0.9 approx. 10secs, in water 0.2 m/sec, diameter 6mm
