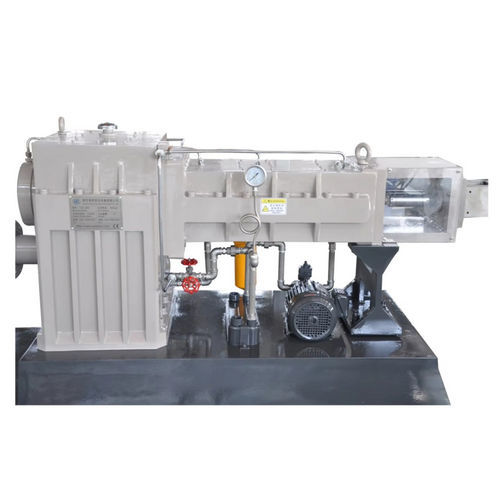

Planetary gearbox TSE

parallel-shaftsolid-shaftcompact

Provide standard or customized for twin screw extruder. The gearbox reduces the motor speed to the speed ofthe screw shafts and distributes it to the two output shafts. Screw torque is 1050 N.m per shaft The gearbox consists of: Involute gear teeth couplings between the output shafts and screw shafts Integrated thrust bearing assembly, radial bearings ofthe output axis are NSK products Bottom part ofcasing designed as oil sump Features of the Gear Box: 1) Reduction Ratio: 3:1 2) Combining host transmission box speed reduction and torque distribution part together, using three axis style design, with compact structure. Speed reduction, torque distribution and two output shaft ridical bearing all use NSK bearings. 3) Input/output shaft oil seal use original Japan brand products. 4) Gear is 6 grade which is a high precision. High speed overloading hard-tooth surface. 5) The bearing and geared are forced to adopted the immersion oil-lubrication system. 6) Framework oil seal use Taiwan brand. The gearbox reduces the motor speed to the speed of the screw shafts and distributes it to the 2 output shafts. The gearbox consists of: ?Involute gear teeth couplings between the output shaft and screw shafts. ?Integrated thrust bearing assembly,radial bearings of the output axis are NSK products. ?Bottom part of casing designed as oil sump.
