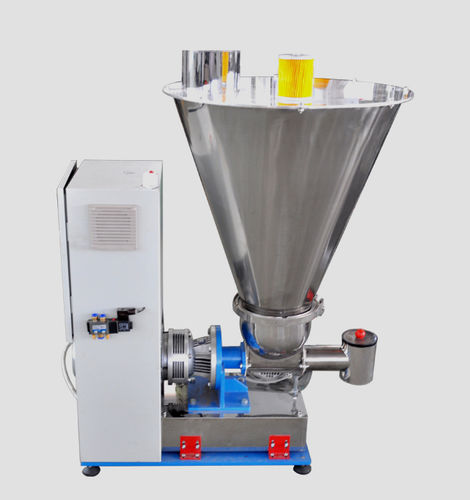

Twin-screw feeder HRS-R

verticalhorizontalhigh-speed

1. Screw interchangeability interface design: (1) Vane screw, effective handling of irregular and block materials; (2) White meshing screw, aiming at materials with poor fluidity, with self-cleaning function; (3) Hollow spring screw, for low melting point viscous single and mixed materials. 2. HRS special aluminum transmission reducer body, which is lighter, easy to dissipate heat, and more suitable for high temperature environment in summer; 3. The horizontal and vertical parts are designed with special stirring, high-precision polishing of the inner wall, triple insurance, and completely solve the material bridging; 4. The closed weighing platform is not counted, which effectively isolates the material from entering the weighing platform, avoids interference with the unprepared operation, and improves the feeding accuracy and stability; 5. The new aviation plug design allows users to easily and quickly disassemble and assemble it; 6. Core controller: suitable for aerospace-grade field, advanced dual PID adjustment, 32-bit high-speed microchip controller, and support modbus RS485, profinet and other upper computer communication to achieve remote control; 7. Sensor: fully imported sensor from Germany, C3 grade, up to 1/15000 high-precision resolution. NANJING HAISI is professional manufacturer of Twin Screw Loss-in-Weight Feeder, we supply Twin Screw Extruder, Single Screw Extruder, Plastic Recycling Extruder, Two Stage Extruder, Lab Scale Machinery, Mixing and Feeding Machine, Cooling and Pelletizing Machine, Crushing Machine and so on.
