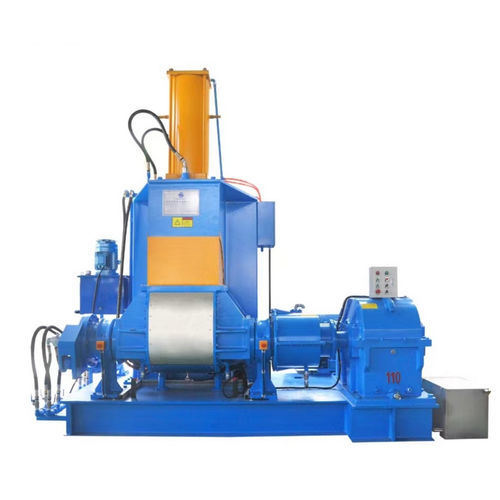

Dynamic kneader

batchgranulespolymer

Mixing chamber: Made of 28CrMnMo cast steel parts that have undergone heat treatment and modulation, and welded with wear-resistant hard alloy with a hardness of HRC60-62 on the contact surface of the material. The overall polishing and hard chrome plating of the mixing room. Machined dovetail groove, embedded with wear-resistant strip, with good sealing. External design water jacket, can be used for water cooling and steam heating. Mixing shaft: The main body is made of CrMo alloy steel forged and tempered through heat treatment. The screw edges are cast using CrMo alloy steel wax molds and welded with alloy welding rods. After overall heat treatment and tempering, wear-resistant alloys are deposited on the edges and surfaces, and the surface is treated with hard chromium plating after polishing and polishing. The stirring edge design is reasonable, with a rounded shape, and the stirring effect is more superior. Cooling water is supplied internally for better cooling. Column: Made of A3 steel plate bent and welded with steel pipe. Has strong stability and stability. Leak proof device: The end face of the mixing shaft adopts a YG8 alloy ring and graphite sealing ring mechanical shaft sealing and tightening system, with polyurethane disc on the outside, double-layer leak proof. The sealing ring and A sleeve are connected by screws for easy replacement, and the side of the pressure cover is equipped with a plate type tightening. Polymer resin fiber materials are wear-resistant and not easily broken. Replacement is convenient and fast, without affecting production progress.
