Spiral spring steel
Add to favorites
Compare this product
Characteristics
- Type
- spiral
- Material
- steel
- Outer diameter
Max.: 300 mm
(11.8 in)Min.: 1 mm
(0 in)- Extended length
Max.: 13,000 mm
(511.8 in)Min.: 2,000 mm
(78.7 in)
Description

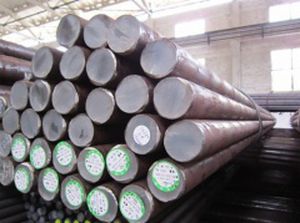

Commodity: Hot rolled spring steel bar
1. Material JIS: SUP9; SUP9A; SUP10; SUP7; SUP12; SUP12V; SUP6;SUP7.
SAE: SAE9254; SAE5160; SAE9260;SAE6150.
DIN: 55Cr3; 51CrV4; 52CrMoV4; 55Si7; 60Si7; 28MnSiB; 58CrMnB4; 27MnMoVB;
65Mn; 55CrSi; 50CrV; 60Si2Mn; CK67; 60Si2CrVA; 60Si2CrMnA.
2. Usage The brake shaft; household appliances; auto and motorcycle parts; spiral spring;
mattress furniture; spring etc.
3. Size Diameter: 12mm-300mm
4. Material chemical composition
Steel grade - C - Mn - S - P - Si - Cr - Cu
SUP9 - 0.52～0.60 - 0.65～0.95 - ≤ 0.030 - ≤ 0.030 - 0.17～0.37 - 0.65～0.95 - ≤0.25
SAE9254 - 0.51～0.59 - 0.60～0.90 - ≤0.040 - ≤0.035 - 1.20～1.60 - 0.60～0.80 -
SAE6150 - 0.48～0.53 - 0.70～0.90 - ≤ 0.035 - ≤ 0.040 - 0.15～0.35 - 0.80～1.10 -
55CrSi - 0.50～0.60 - 0.50～0.80 - ≤ 0.030 - ≤ 0.03 - 1.20～1.60 - 0.50～0.80 - ≤ 0.02
60Si2Mn - 0.56～0.64 - 0.60～0.90 - ≤ 0.035 - ≤ 0.035 - 1.60～2.00 - ≤ 0.035 - ≤0.25
50CrVA - 0.46～0.54 - 0.50～0.80 - ≤ 0.030 - ≤ 0.030 - 0.17～0.37 - 0.80～1.10 -
50CrV - 0.46～0.54 - 0.50～0.80 - ≤ 0.030 - ≤ 0.030 - 0.17～0.37 - 0.80～1.10 - ≤0.25
CK67 - 0.63～0.68 - 0.50～0.80 - ≤ 0.035 - ≤ 0.035 - 0.10～0.30 - ≤0.15 - ≤0.25
5. Mechanical properties
Steel grade - Yield strength Mpa - Tensile strength Mpa - Elongation A% - Reduction of area Z%
60Si2Mn - ≥1175 - ≥1275 - A11.3≥5 - ≥25
55CrMnA - ≥1075 - ≥1225 - ≥9 - ≥20
60CrMnA - ≥1075 - ≥1225 - ≥9 - ≥20
