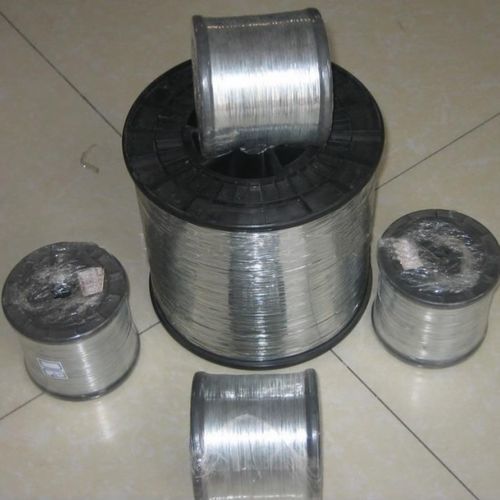

Stainless steel wire

coilmesh

Coarse wire (from 5.5mm to 1.0mm) Technical data: Material: SUS304, SUS316L, SUS310S, SUS308S, SUS309S, SUS321, etc., imported from Japan and France. Wire diameter: from 5.5mm to 1.0mm Weight/ coil: 30kg-50kg/barral, 50kg-150kg/coil Tensile Strength: above 650Mpa Elongation: above 25% Applications: Standard parts, wire rope, spring, welded wire, and wire cloth weaving. Medium Wire (from 1.0mm to 0.09mm) Technical Data: Technical standard: Q/9D183-2002 Material: SUS304, SUS316L imported from Japan and France Diameter: from 1.0mm to 0.09mm Spool type: OB80, OB115, K100, DIN160, DIN200 Weight/spool: 500g-2kg/spool, 5kg-10kg/spool Elongation: above 25% Tensile strength: above 650Mpa Applications: wire mesh weaving, wire redrawing. Fine Wire Technical standard: Q/9D183-2002 Material: SUS304, SUS316L imported from Japan and France Diameter: from 0.09mm to 0.015mm Spool type: OR80, OR115, HK100 Weight/spool: 500g-2kg/spool, Elongation: above 25% Tensile strength: above 70Mpa Applications: wire mesh weaving, textile fabric like radiation resistant shield clothing.
