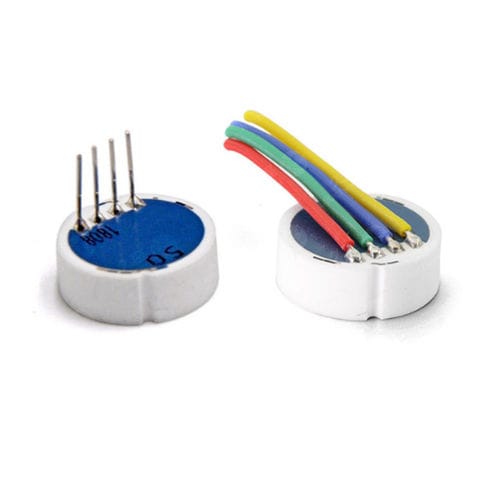

Relative pressure sensor JC-CS01

ceramicO-ring

JC-CS01 Ceramic Pressure Sensor Introduction JC-CS01 ceramic pressure sensor are made with a ceramic cell and work following the piezoresistive principle. The Wheatstone bridge is screen printed directly on one side of the ceramic diaphragm by means of Thick Film technology. The diaphragm’s opposite side can be exposed directly to the medium to be measured. Because of the Al2O3 ceramic excellent chemical resistance (aggressive gases, most of solvents and acids, etc.), no additional protection is normally required. Thanks to the reinforced outer area (monolithic structure), the sensor can be mounted directly in a plastic or metallic case by using O-ring. JC-CS01 ceramic pressure sensor are designed in such a way so that temperature changes and pressure overloads do not cause loss in reliability. JC-CS01 sensors ensure optimal linearity across the entire range of measurement and minimize effects of hysteresis. JC-CS01 Ceramic Pressure Transducer Features * Low cost OEM * Wide operable temperature range -40-135 ℃ * Compatible with corrosive media * Small profile and easily to be welded * Typical output：3mV/V JC-CS01 Ceramic Pressure Transducer Application * Pneumatic Equipment * Hydraulic Equipment * Medical Equipment * Air Compressors * Refrigeration Systems * Battery-powered Equipment
