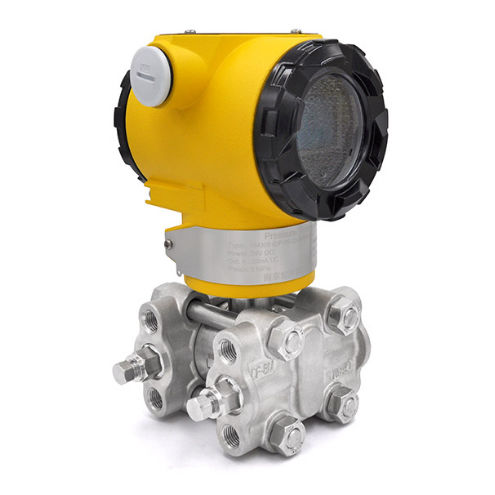

Differential pressure transmitter JC3051

sensitive elementdigitalPCB

JC3051 Digital Display Differential Pressure Transmitter Introduction JC3051 digital display differential pressure transmitter is a new type of instrument researched and developed by Jiucheng Sensor according to international advanced technology combined with many domestic technologies. This differential pressure transmitter adopts micro-processing technology for temperature characteristic and non-linear compensation, thus having greatly enhanced the measurement accuracy of the instrument, improved the temperature characteristic and expanded the turndown ratio. Besides, intelligent functions can be added, which further meets the requirements of high reliability and high stability of the instrument at the industrial sites. The adoption of digital technology in the capacitive pressure / differential pressure transducer not only ensures high reliability of the instrument and other superior performance, but also realizes the remote digital connection between the intelligent instrument and the control room to ensure rapid and reliable communication. The control room can remotely enquire into or make a real–time configuration of the transducer. The sensitive elements of this intelligent differential pressure transmitter are the same as those of general JC1151 series of capacitive transducers and featured by stability and reliability. JC3051 Digital Display Differential Pressure Sensor Working Principle The intelligent PCB integrates converting circuit and processing circuit into one circuit using advanced IC and SMT technology.
