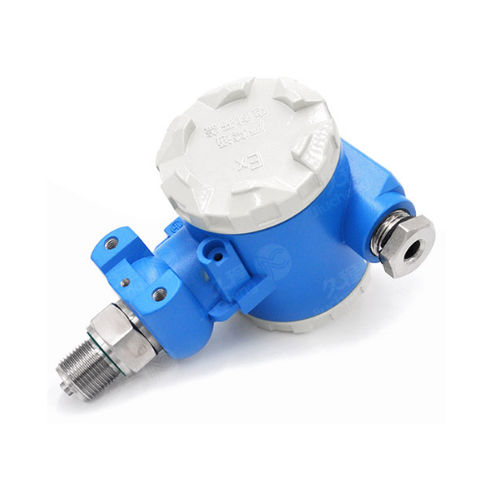

Absolute pressure sensor JC660

differentialsiliconthreaded

JC660 Anti-explosion Pressure Sensor Overview: JC660 anti explosion pressure sensor is specially designed for high-explosion dangerous site. The anti explosion pressure transmitter can provide stable and accurate measurement at an absolute pressure, gauge pressure and differential pressure of liquid or gas medium from -100KPa to 200MPa. JC660 anti explosion pressure transmitter welds the existing multi -crystalline silicon film sensing element of Jiucheng with the enclosure using welding technology and can be customized rapidly according to the regulations to meet the individualized needs of different users. With built-in amplification circuit and diversified structural forms, it can be equipped with M 20 x 1.5 or G1 / 2 internal thread explosion-proof flexible tube connector. Featured by good performance, small size and flexible design, JC660 anti-explosion pressure transmitter has the advantages of a very high ratio of performance to cost and long service life compared with traditional explosion-proof transducer . JC660 anti explosion pressure sensor is widely used in oilfield, mining well, chemical, electric power, boiler, natural gas and other fields. JC660-E type pressure sensor is an intrinsically safe explosion-proof pressure sensor , with explosion- proof marking of Ex iaII CT6 and explosion-proof conformity certificate number of CNEx07.0988. It boasts stable and reliable performance supporting the use of repetitive-use type safety energy limiter or safety barrier.
