Heavy load racking NH1 TYPE (80 TYPE)

palletsteel

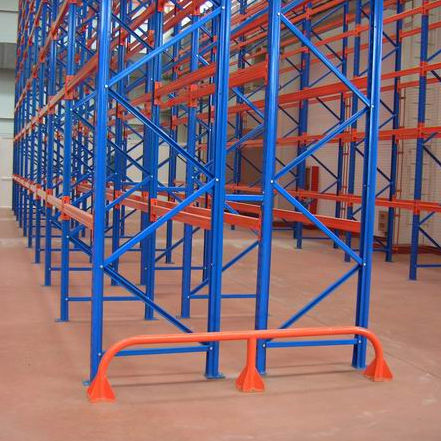

Pallet racking is also called beam pallet racking which is of cut-in composite structure; the upright made by continuous punching and rolling; the frame is assembled by upright,bracing and beams are fixed to uprights by hooks. There are spring safety locks or L locks to fix beams and uprights tightly, protecting beams from dropping when loading goods with forklifts. The height of each layer can be adjusted by 75mm or 76.2mm freely, the capacity of each layer can be up to 3000kg. It’s convenient to load and unload pallets with goods on by using forklifts; Such forklifts as front-move forklift 、balance-weight forklift and common forklift can be used to load and unload goods. Steel panels, wooden panels and decking are also available for putting on beams instead of pallets. Pallet racking is the most common storage system which is used in fields of manufacturing industry、the third part logistics、distribution centers、supermarket and so on. Model: Heavy Duty Pallet Racking Upright specification: NH1 TYPE (80 TYPE)、NH2 TYPE(90 TYPE)、NH3 TYPE(100 TYPE),NH4 TYPE(120 TYPE)、or customized by clients Beams are divided into box beam and step beam Sectional sizes of box beams include: Y80、Y100、Y110、Y120、Y140、 Sectional sizes of step beams include:P80，P110，P63.5，P76.2，P88.9，P101.6，P114.3 Pallet support bar: regular type （J50*30*1.5，J60*40*1.5）
