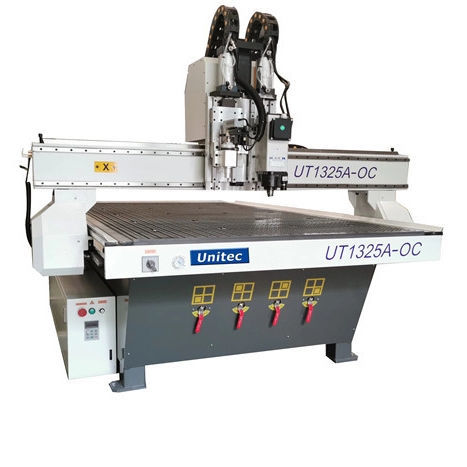

CNC router UT1325A-OC

3-axiswoodacrylic

3 spindles: 3 x 3.5kw air cooling spindle # Table: Vacuum table with vacuum pump # Transmission: X, Y gear transmission, Z-axis Taiwan TBI ball screw # Inverter: Fuling inverter # Square rail from Taiwan HIWIN # Motor: Stepper motor system # Operating System: DSP control system # Dual dust collector # Oil injection system # Be compatible with various CAD/CAM software as TYPE3/Artcam/Casmate/Artcut,etc # Filter, tool sensor, tools box # 380v 3 phrase. Features: 1. X Y use taiwan square rails. and 20mm diameter, C7 precision ballscrew made from Taiwan. make these model machine working very stable and more durable. 2. Iron casting table body insure machine movement of working more stable and low noisy. 3. mach3 controller with usb port. you can use your laptop to control machine Application: Such as seal, packing, scutcheon and pane making, decorating, art and craft, architecture model, souvenir,badge, electric circuitry and carpentry field. Suitable for Materials: Engrave & cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum, brass, steel.
