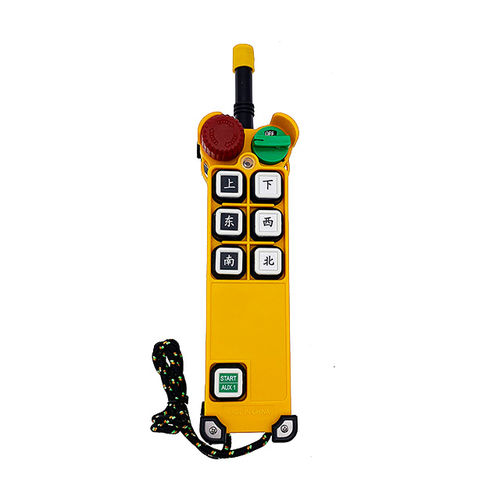

Wireless remote control F24-6D

with buttons6-buttonwith emergency stop

315mhz Wireless Overhead Crane Industrial Remote Control Brand: LCC Brand Name: LCC Certification: CE Place Of Origin: China Function: 6 double-speed buttons Frequency: 315mhz Transmitter Function: double-speed , 6 buttons Transmitter Antenna: Inside Receiver Antenna: Inside / optional external antenna Housing: Reinforced nylon plastic Distance: 100 meters / can be customized to 300 meters Voltage: DC/AC 12v,24v,110v,48v,220v [Six]functional features ► It has seven functional buttons (Six single-speed buttons+A start button) ► Standard mushroom head rotation emergency stop button one ► Empty points up to eight ► Battery voltage alarm device, insufficient voltage automatically shut off the circuit ► Security key switch, use prevent not grantee ► Can through the cable connected to the computer set keys function model Transmitter unit is mainly composed of coding circuit and high-frequency émission circuit, to launch control information, achieve the goal of remote control. When the operator press the buttons on the transmitter, the encoding module immediately perceived is the key, and combine the address of the key identification number and hamming code encoded into "control data" (control) to launch the high frequency circuit, modulation is used to a modulated radio frequency carrier modulation output frequency modulation signal and rf amplifier amplification, after low pass filter filter to the transmitting antenna.
