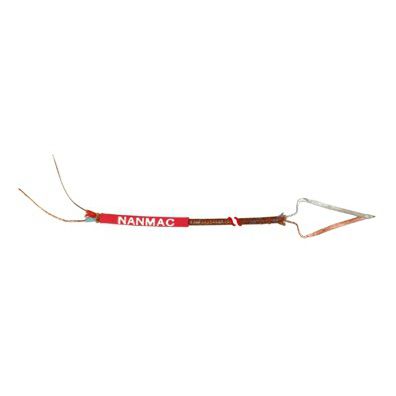

Thermocouple B4 Series

for surface temperature measurementstainless steelinsulated

Ribbon & Weldable Tab Thermocouples for Surface Temperatures B4 Series The Model RCF thermocouple has a flat ribbon sensing tip (1/2 inch wide by 7/9 inches long by ~0.002 inches thick) with 36 inches of flexible fiberglass leads. This model has lowmillisecond response times: The Model RCS thermocouple is similar to Model RCF except, it has a 12 inch long stainless steel clad, ceramic packed extension shaft. As a result, the sensor can operate up to temperatures of 2,000 degrees Fahrenheit maximum, depending upon thermocouple type and duration of exposure. The Model WT weldable tab thermocouple has a 3/4 inch by 3/4 inch by 0.030 inch thick stainless steel welding tab, brazed onto a grounded junction (1/8 inch OD thermocouple). It also has 36 inches of fiberglass insulated extension leads. The sensing tiphas a maximum service temperature of 1,000 degrees Fahrenheit.
