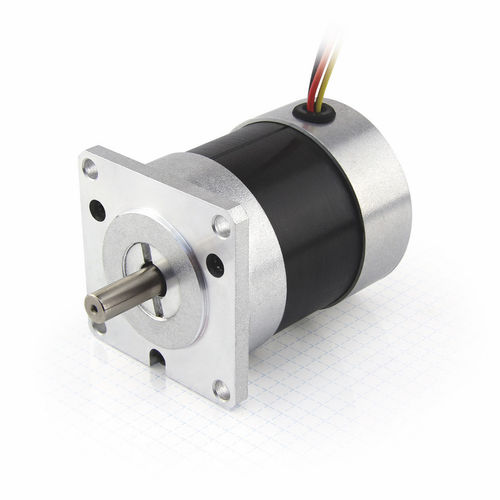

DC motor DB59brushless24 Vwith brake
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 24 V
- Configuration
- with brake
- Other characteristics
- with built-in encoder
- Power
Max.: 220 W
(0.299 hp)Min.: 84 W
(0.114 hp)- Torque
Max.: 60 Nm
(44.2537 ft.lb)Min.: 23 Nm
(16.9639 ft.lb)- Rotational speed
3,500 rpm
(21,991.15 rad.min-1)- Diameter
56 mm
(2.2 in)
Description
Brushless DC motor with high efficiency and smooth running characteristics and round or angular flange. With outputs ranging from 84 W to 220 W, depending on the version, the DB59 is one of the most powerful BLDC motors of this size. For higher torques and a wider performance range Nanotec offers planetary gears with an identical construction. Four lengths are available for each flange shape.
Via the online configurator this motor can also be ordered with magnetic encoder or brake.
The following motor versions are available with round or angular flange:
Motor with one shaft end and Hall sensors (DB59 …-A)
Motor with two shaft ends and encoder (DB59 …-B)
Motor with two shaft ends, encoder and brake (DB59 …-B3)
