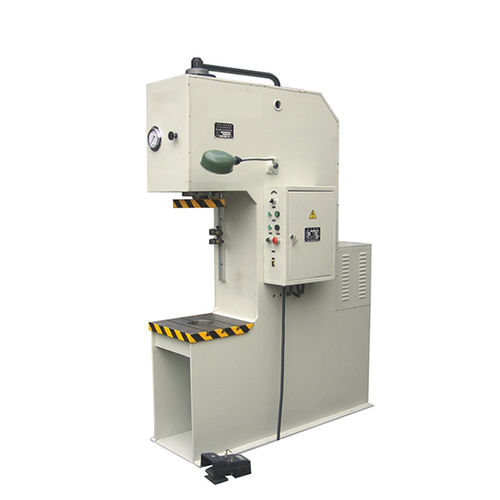

Hydraulic press YRT41-6.3manualformingC-frame
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, manual
- Function
- forming
- Structure
- C-frame
- Other characteristics
- vertical
- Force
Min.: 63 kN
Max.: 8,000 kN
- Table width
Min.: 380 mm
(15 in)Max.: 2,400 mm
(94 in)- Table length
Min.: 440 mm
(17 in)Max.: 3,000 mm
(118 in)- Max. pressure
8 MPa, 13 MPa, 16 MPa, 20 MPa, 25 MPa
- Working speed
Min.: 5 mm/s
Max.: 20 mm/s
- Return speed
Min.: 45 mm/s
Max.: 100 mm/s
Description
♦ Computer optimized vertical C-frame structure with high rigidity
♦ Attractive and neat appearance, with driving system inside the frame
♦ Manual directional control valve is adopted in hydraulic system for easy speed regulation
♦ Hand operation or pedal operation at operator's choice
♦ Stroke and pressure can be adjusted within specified scope
