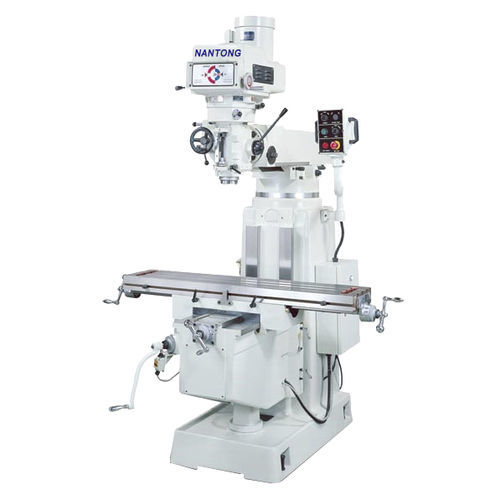

3-axis milling machine YJ-X6332

verticalvariable speed

Table Size 230x1245mm (9 "x49") T-slot for table (Q size x size) 3x16mm (3x0.629 ") Longitudinal Travel (X-Axis) Manual 930 mm (36 ") Car 850 mm (33.7 ") Cross Travel (Y-axis) 305 mm (12.007 ") Knee vertical travel (Z axis) 406 mm (15.984 ") Ram Travel 356 mm (14 ") Quil Travel 127 mm (5 ") Spindle taper NST # 30 / R8 (option NST # 40) Spindle to the desktop nose 34 ~ 440 mm (1-3 / 8 "~ 17-3 / 8") Spindle center to column 154 ~ 544 mm (6 "~ 21.4") Turned 360 ゜ on the turntable Head rotation (R & L) +/- 45 ゜ Head tilt (up and down) +/- 45 X-axis motor options: power supply Lift motor zero Quail feed 0.04 ~ 0.08 ~ 0.14mm / rpm (0.0015 "~ 0.003" ~ 0.006 ") Spindle speed step 50Hz low: 66 ~ 270 high: 550 ~ 2270 60Hz Low: 80~325 High: 660~2720 Variable speed head 50Hz low: 50 ~ 420 high: 420 ~ 3750 60Hz Low: 60 ~ 500 High: 500 ~ 4500 Total height 2140 mm (82.874 ") Overall Depth 1618 mm (63.7 ") Total width 1497 mm (58.937 ") Net weight 950Kgs (2200lbs)
