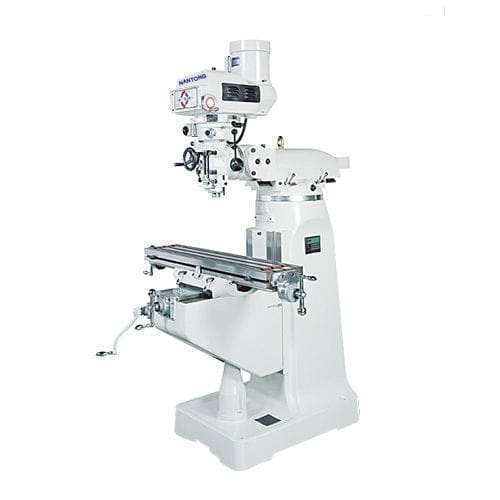

3-axis milling machine YJ-X6332

verticalvariable speed

Table Size 250x1370mm (10 "x54") T-slot for table (Q size x size) 3x16mm (3x0.629 ") Car 775 mm (30.5 ") Ram Travel 560 mm (22 ") Quil Travel 127 mm (5 ") Spindle taper NST # 30 / R8 (option NST # 40) Spindle to the desktop nose 85 ~ 535 mm (3.3 "~ 21") Spindle center to column 170 ~ 730 mm (6.6 "~ 28.7") Turned 360 ゜ on the turntable Head rotation (R & L) +/- 45 ゜ Head tilt (up and down) +/- 45 X-axis motor options: power supply Lift motor zero Quail feed 0.04 ~ 0.08 ~ 0.14mm / rpm (0.0015 "~ 0.003" ~ 0.006 ") Spindle speed step 50Hz low: 66 ~ 270 high: 550 ~ 2270 60Hz Low: 80~325 High: 660~2720 Variable speed head 50Hz low: 50 ~ 420 high: 420 ~ 3750 60Hz Low: 60 ~ 500 High: 500 ~ 4500 Total height 2262 mm (89 ") Overall Depth 2120 mm (83.5 ") The total width of 1840 mm (72.4 ") Net weight 1500Kgs (3750lbs)
