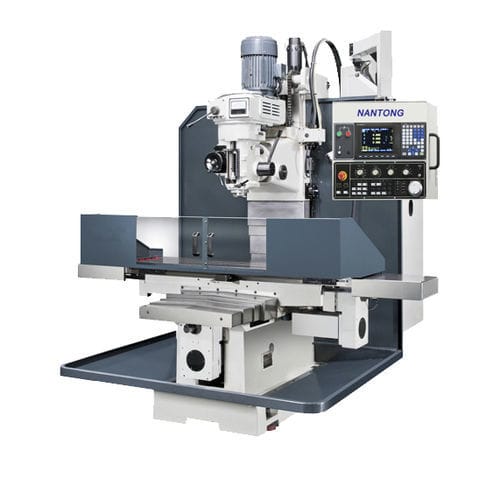

3-axis CNC milling machine YJ-CNC1000vertical
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- X travel
1,070 mm
(42.13 in)- Y travel
510 mm
(20.08 in)- Z travel
510 mm
(20.08 in)- Rotational speed
5,000 rpm
(31,416 rad.min-1)- Power
5 ch
(5 hp)- Work feed X-axis
Min.: 0 mm/min
(0 in/s)Max.: 750 mm/min
(0 in/s)- Work feed Y-axis
Min.: 0 mm/min
(0 in/s)Max.: 750 mm/min
(0 in/s)- Weight
2,600 kg
(5,732.02 lb)- Overall length
2,380 mm
(93.7 in)- Overall width
2,200 mm
(86.6 in)- Overall height
2,550 mm
(100.4 in)
Description
Table size 1520 x 400 mm
Table T slot (number x width) 3 X 1 6 mm
Guell travels 140 millimeters
Spindle nose to the table surface 85 ~ 585 mm
Head rotation (R & L) 45 °
Spindle taper NSP # 40
Feed rate 0.035 ~ 0.07 ~ 0.14
Spindle to surface 525 mm
XY rapid movement 7.5 M / min
