3-axis CNC machining center YJ-VMC600
verticalBT 4010 tools

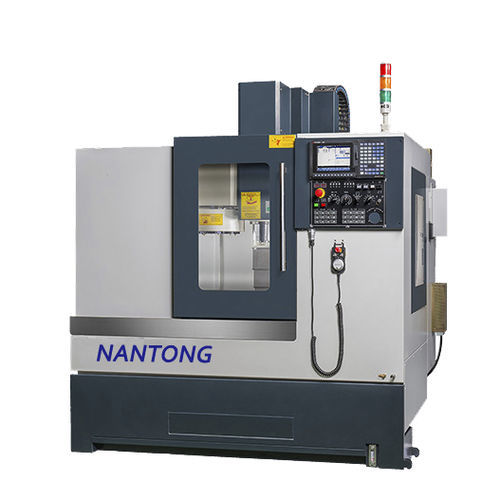

3-axis CNC machining center - YJ-VMC600 - NANTONG YIJI MACHINERY CO., LTD. - vertical / BT 40 / 10 tools
3-axis CNC machining center - YJ-VMC600 - NANTONG YIJI MACHINERY CO., LTD. - vertical / BT 40 / 10 tools
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
BT 40
Number of tool stations
10 tools
X travel

610 mm
(24.02 in)

Y travel

350 mm
(13.78 in)

Z travel

460 mm
(18.11 in)

Rotational speed

8,000 rpm
(50,265 rad.min-1)

Work feed X-axis

15,000 mm/min
(10 in/s)

Work feed Y-axis

15,000 mm/min
(10 in/s)

Work feed Z-axis

15,000 mm/min
(10 in/s)

Table load capacity

350 kg
(772 lb)

Tool weight (max)

6 kg
(13.2 lb)

Weight

2,600 kg
(5,732.02 lb)

Overall length

1,800 mm
(70.9 in)

Overall width

1,720 mm
(67.7 in)

Overall height

1,987 mm
(78.2 in)

Description

travel Spindle nose to the desktop 70 ~ 530 (2.7 ~ 20.8 inches) mm Spindle center to cylinder 430 (16.9 inches) mm table Table size 710x350 (27.9x13.7 inches) mm T slot (size / number / min) 16x5 mm Feed rate Cutting feed speed 1 ~ 10 M / min Automatic tool change Tool storage capacity without arm 10 maximum. Tool diameter full: 100 mm Next empty: 150 mm maximum. No tool length Arm: 300 mm (11.8 inches) * Arm: 210 (8.2 inches) mm CNC controller and motor CNC Controller Mitsubishi E70 Spindle motor 3.5 / 5.5 kilowatts The shaft drive is directly coupled Coolant Coolant pump 3/4 HP other Lubrication pump 75 W Air and power Air source 6 kg / square meter Power 12 KVA Manufacturers reserve the right to make changes to their designs, specifications, institutions, etc., to improve machine performance. Specifications are subject to change without notice. 点击图标下载 App
