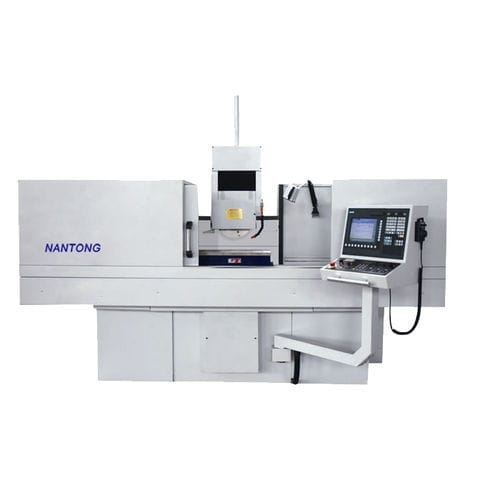

Workpiece grinding machine YJ-CNC420

CNC

Technical parameters Parameters Unit unitUnit YJ-CNC420 Workbench bearing kg 150 X-axis table move around About the maximum travel table mm 420 Workbench speed m / min 0.005 ~ 35 Y-axis grinding head moves up and down Work table to spindle center distance mm 90 ~ 415 Grinding head moving speed mm / min 5 ~ 4000 Minimum grinding head mm 0.001 Z axis move back and forth transversely Horizontal front and rear maximum travel mm 200 Horizontal movement speed mm / min 5 ~ 4000 Horizontal minimum feed mm 0.001 C axis spindle Spindle motor power kw 3.7 Grinding wheel standard mm 225 × 25 × 51 Note: 1, this information is for reference only, the manufacturer reserves the right to change the size and design specifications. 2, some pictures in the machine special configuration, to be matching.
