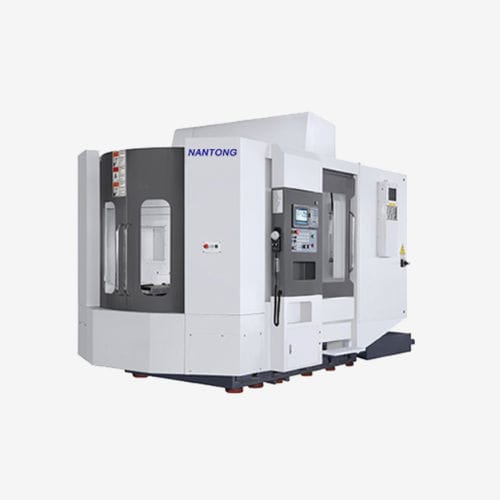

3-axis CNC machining center YJ-H50

horizontalwith rotary tableBT 50

CNC machine tool products, the standard BT50 spindle, the machine bed as a whole casting, can be a variety of different configurations, enabling four-axis four-linkage, widely used in military, aerospace, automotive, mold, machinery manufacturing and other parts of the box, Body parts, disk parts, shaped parts processing, parts by a folder can be automatically completed four milling, boring, drilling, expanding, reaming, tapping and other processes, to ensure the accuracy and efficiency of processing. T-shaped body as a whole above the front of the bed bed saddle, table saddle along the bed of the linear guide moves left and right for the X-axis direction, the bed above the rear column, the column along the bed body linear guide back and forth to Z axis Direction, the milling head moves up and down in the column for the Y axis direction, table rotation (B axis) can be divided into indexing and CNC turntable. The company is located in: Second, the performance characteristics 1, the overall casting bed, the design process through finite element analysis to make the product structure more reasonable, due to the overall casting, making the machine with cutting rigidity, smooth cooling liquid flow recovery, the overall sealing machine and many other advantages, the whole machine weighed 12 tons more shows the high rigidity of the machine. 2, the main motor, such as the use of FANUC wide area motor, through the motor into the line connection changes, both for high-speed machining, but also to achieve low-speed high-torque cutting;
