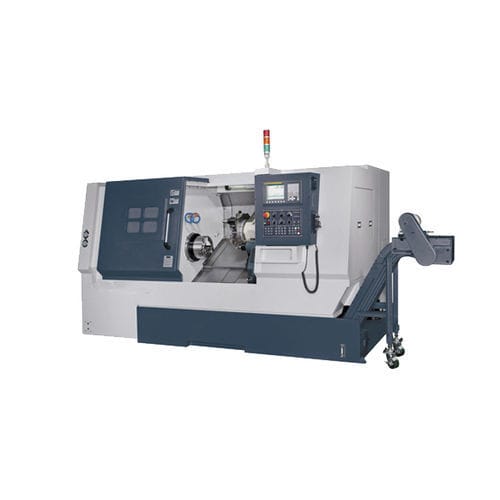

CNC turning center YJ-CT350

2-axisA2-812 tools

Box design with thicker riders allows no conversion. The machine is made of Meehanite cast iron. Strain relief structure with long-term static and dynamic accuracy of the metal stability and deformation fee characteristics. Each contact surface is precisely hand scraped to improve the overall flatness and improve the geometric accuracy. The cast design guided around the pressure current maintains a longer service life. With high-quality, high-precision linear guide. Fast feed rates of 20 and 24 m / min for the X and Z axes ensure efficient machining. High-precision C3 class player X, Z axis Ø32mm, Ø40mm. Direct drive coupling experiments in the actual pre-tension test to ensure that the shaft positioning accuracy. Hydraulic tailstock stroke can be controlled by NC program. Tailstock sleeve thrust can be adjusted from the front of the machine. Manufacturers reserve the right to modify designs, specifications, mechanisms, etc. to improve machine performance. Specifications are subject to change without notice. capacity Swing Ø400mm on saddle maximum. Turning length 500 (* 750 / 1,000) mm spindle Power chuck system 10 (* 12) inches Hole diameter Ø76 (Ø92) mm turret Tool change type SERVO Rotary shank size 25x25 mm The maximum diameter rod Ø40 (* Ø50) mm Power Tools N / A Power Tools Motor N / A Power Tools Speed N / A Tailstock Tailstock body travel 830 (* 580 / 1,080) mm Quil travel 100 mm Duvet 5 MT Down diameter Ø85 mm
