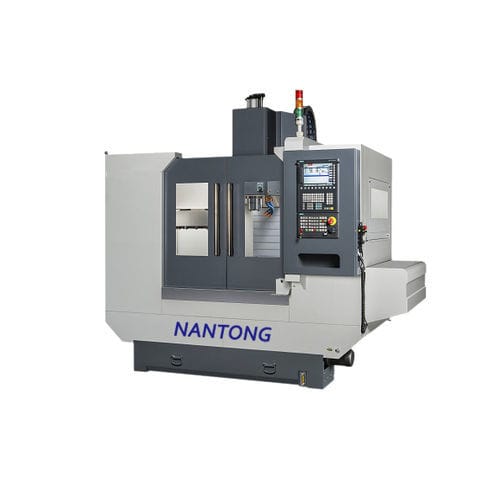

3-axis CNC machining center YJ-VMC650verticalBT 40CAT40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40, CAT40
- Number of tool stations
- 16 tools
- X travel
760 mm
(29.92 in)- Y travel
450 mm
(17.72 in)- Z travel
460 mm
(18.11 in)- Rotational speed
8,000 rpm, 10,000 rpm, 12,000 rpm, 15,000 rpm
(50,265 rad.min-1, 62,832 rad.min-1, 75,398 rad.min-1, 94,248 rad.min-1)- Work feed X-axis
12,000 mm/min
(8 in/s)- Work feed Y-axis
12,000 mm/min
(8 in/s)- Work feed Z-axis
12,000 mm/min
(8 in/s)- Table load capacity
500 kg
(1,102 lb)- Tool weight (max)
6 kg
(13.2 lb)- Weight
3,000 kg
(6,613.87 lb)- Overall length
2,700 mm
(106.3 in)- Overall width
2,085 mm
(82.1 in)- Overall height
2,470 mm
(97.2 in)
Description
travel
Spindle nose to the desktop 120 ~ 570 (4.7 ~ 22.4 inches)
* 120 ~ 700 (4.7 ~ 27.5 inches) mm
Spindle center to cylinder 510 (20 in.) Mm
table
Table size 900x400 (35.4x15.7 inches) mm
T slot (size / number / min) 18x3 mm
spindle
Transfer belt type
Feed rate
Cutting feed speed 1 ~ 10 M / min
Automatic tool change
maximum. Tool diameter full: 100 mm
Next empty: 150 mm
maximum. Tool length 300 mm
CNC controller and motor
CNC Controller Mitsubishi E 70
Spindle motor 5.5 / 7.5 kilowatts
Axis drive timing pulley 1: 2
Coolant
Coolant pump 1/6 HP
other
Lubrication pump 75 W
Air and power
Air source 6 kg / square meter
Power 12 KVA
Manufacturers reserve the right to make changes to their designs, specifications, institutions, etc., to improve machine performance. Specifications are subject to change without notice.
