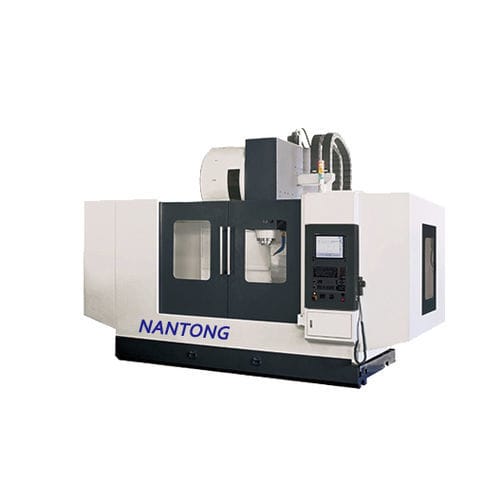

3-axis CNC machining center YJ-VMC2000
verticalBT 50CAT50

3-axis CNC machining center - YJ-VMC2000 - NANTONG YIJI MACHINERY CO., LTD. - vertical / BT 50 / CAT50
3-axis CNC machining center - YJ-VMC2000 - NANTONG YIJI MACHINERY CO., LTD. - vertical / BT 50 / CAT50
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
BT 50, CAT50
Number of tool stations
24 tools
X travel

2,000 mm
(78.74 in)

Y travel

900 mm
(35.43 in)

Z travel

800 mm
(31.5 in)

Rotational speed

6,000 rpm
(37,699 rad.min-1)

Power

11 kW, 15 kW
(14.96 hp, 20.39 hp)

Work feed X-axis

15,000 mm/min
(10 in/s)

Work feed Y-axis

15,000 mm/min
(10 in/s)

Work feed Z-axis

12,000 mm/min
(8 in/s)

Table load capacity

2,500 kg
(5,512 lb)

Tool weight (max)

15 kg
(33.1 lb)

Weight

16,500 kg
(36,376.27 lb)

Overall length

5,500 mm
(216.5 in)

Overall width

3,335 mm
(131.3 in)

Overall height

3,310 mm
(130.3 in)

Description

travel Spindle nose to the desktop 200 ~ 1,000 (7.8 ~ 39.3 inches) mm Spindle center to cylinder 975 (38.3 inches) mm table Table size 2,200x850 (86.6x33.4 inches) mm T slot (size / number / min) 22x5x150 mm spindle Transmission gear head Feed rate Cutting feed speed 1 ~ 10 M / min Automatic tool change maximum. Tool diameter full: 125 mm Next empty: 200 mm maximum. Tool length 300 mm CNC controller and motor CNC Controller Mitsubishi (* FANUC / SIEMENS / HEIDENHAIN) Shaft motor 4.5 / 7.0 / 4.5KW Coolant Coolant pump 0.75 HP Coolant tank capacity 300 L Air and power Air source 6 kg / square meter Power 35 KVA Manufacturers reserve the right to make changes to their designs, specifications, institutions, etc., to improve machine performance. Specifications are subject to change without notice.
