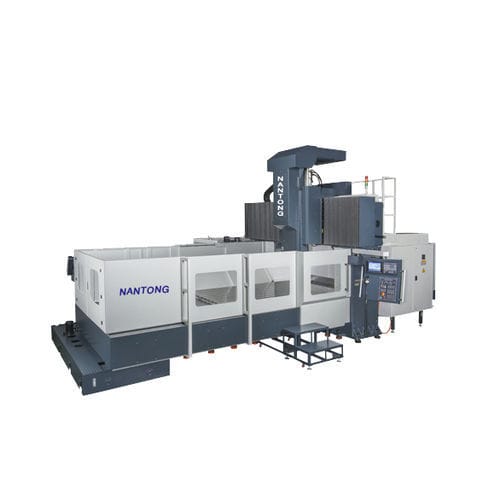

3-axis CNC machining center YJ-SKX2516

verticalgantrycutting

the machine adopts gantry frame, beam column integrated structure. Compact design, high rigidity, good thermal stability, especially for heavy cutting. large cross-beam cross-section design and ladder-type track structure. Enhance the beam bending, torsional rigidity, is conducive to cutting stability. spindle center close to the Z-axis rail, high rigidity, good vibration resistance. the three-axis world famous roller linear guide, X, Z with 6 slider design, greatly enhance the rigidity, heavy cutting. Z-axis movement using SCBS automatic compensation balance system, double balance cylinder balancing mechanism counterweight balance. Ensure that the headstock movement lightweight, smooth, stable. bed configuration on both sides of the twin-screw chip removal system, the machining of the generated chips, at any time by chip conveyor screw conveyor chain scraper. Second, the performance characteristics 1, large rough, finishing Imported pentahedron machining center, after the second heat treatment rough to eliminate the processing stress, to ensure the long-term stability of machine precision; both ends of the ball screw are pre-stretched, greatly increasing the transmission stiffness and eliminate the thermal deformation generated during rapid movement. The use of high-precision laser interferometer, to achieve pitch, backlash compensation, so that the movement of the axis position more accurate, more suitable for processing high-precision parts, to ensure that the machine positioning accuracy and repeat positioning accuracy;
