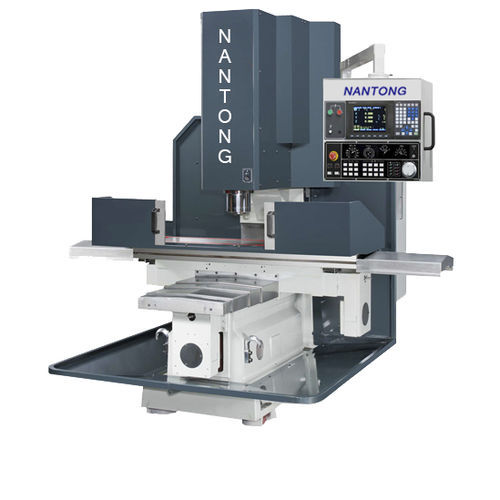

3-axis CNC milling center YJ-CNC850verticalBT 40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- X travel
850 mm, 1,000 mm
(33.46 in, 39.37 in)- Y travel
450 mm, 500 mm
(17.72 in, 19.69 in)- Z travel
450 mm, 600 mm
(17.72 in, 23.62 in)- Work feed X-axis
Max.: 12 mm/s
(0 in/s)Min.: 0 mm/s
- Work feed Y-axis
Max.: 12 mm/s
(0 in/s)Min.: 0 mm/s
- Work feed Z-axis
Max.: 0 m/s
(0 ft/s)Min.: 0 m/s
(0 ft/s)- Table load capacity
400 kg
(882 lb)- Weight
2,100 kg
(4,629.71 lb)- Overall length
2,170 mm
(85.4 in)- Overall width
1,975 mm
(77.8 in)- Overall height
2,474 mm
(97.4 in)
Description
Table size 1270x305 mm
Spindle T slot (numberxwidth) 3x16 mm
Table loading capacity of 400 kg
Spindle taper 150-600 (choose 150-750)
Spindle center to column front surface 7.5 HP
Ram travels 510 millimeters
XYZ axis motor 1Kw AC servo
XYZ axis feed rate 0 ~ 750mm / min
Coolant pump 1/4 (option 1/2)
