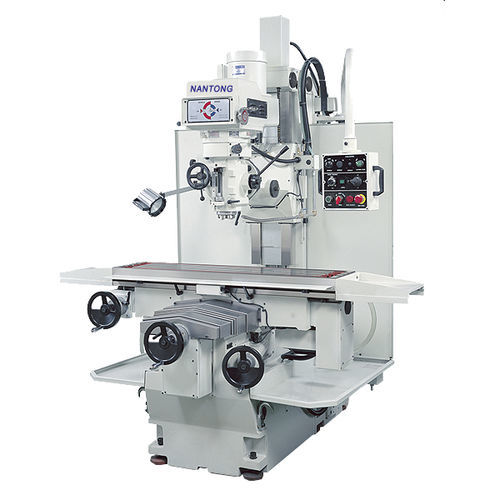

3-axis milling machine YJ-X6332

verticalvariable speed

Table size 1 2 7 0 X 3 0 5 mm Table T slot (number x size) 3 X 1 6 mm Quil Travel 4 5 0 mm Spindle to desktop nose (D) 9 0 ~ 5 4 0 mm Spindle Spindle taper NST # 4 0 Spindle speed (RPM) - Step head 5 0 Hz Low: 5 4~3 3 0 High: 4 7 5 - 2 8 7 5 6 0 Hz Low: 6 5~4 0 0 High: 5 7 0~3 4 5 0 6 0 Hz low: 60 Hz~500 high: 5 0 0~4 3 0 0 The turret on the turret was 127 mm Metal feed (mm / rpm) 0 .0 4 mm ~ 0. 0 8 mm ~ 0. 1 4 mm Head Rotation (R & L) + - 4 5 Spindle to column (E) 5 6 5 mm Feed rate XYZ axis feedrate (per minute) 0 to 180 mm (0 to 7 1 ") stepless adjustment Quickly move the XY axis (every minute) 180 0 0 Z-axis rapid movement (every minute) 9 0 0 Engine Drive the X-axis 1HP servo motor Drive Y axis servo motor option Drive 1/2 HP lift motor on the Z axis Coolant pump 1/8 HP Length x width x height (A x B x C) 2 2 3 0 mm X 1 7 5 0 mm X 2 0 5 0 mm The machine weighs 2 2 5 0 kg
