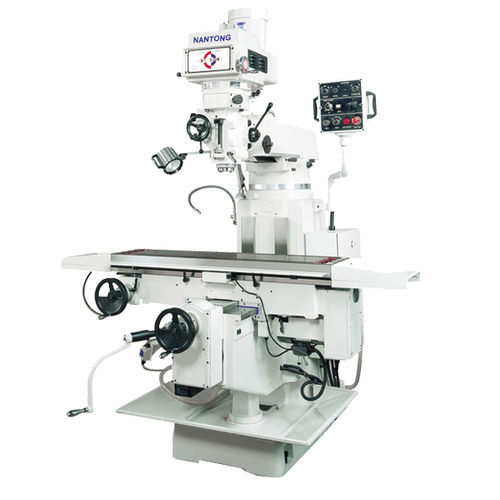

3-axis milling machine YJ-X6332

vertical

Table Size 305x1270mm (12 "x 50") 305x1270mm (12 "x 50") T-slot for table (Q size x size) 3x16mm (3x0.629 ") 3x16mm (3x0.629") Car 850 mm (33.464 ") 850 mm (33.464") Lahm Travel 510mm (20 ") 510mm (20") Quil Travel 127mm (5 ") 127mm (5") Spindle taper NST # 40 NST # 40 Spindle to desktop nose 85 ~ 485 mm (3.3 "~ 19") 85 ~ 485 mm (3.3 "~ 19") Spindle center to column 140 ~ 650 mm (5.5 "~ 25.6") 140 ~ 650 mm (5.5 "~ 25.6") Turn 360 ゜ 360 ゜ on the turntable Head rotation (R & L) +/- 45 ゜ +/- 45 Head tilt (up and down) option options X-axis motor 1 / 2HP inverter motor 1 / 2HP servo motor Hoisting motor 1HP gear motor 1HP gear motor Quail feed 0.04 ~ 0.08 ~ 0.14mm / rpm (0.0015 "~ 0.003" ~ 0.006 ") 0.04 ~ 0.08 ~ 0.14mm / rpm (0.0015" ~ 0.003 "~ 0.006" Spindle speed step 50Hz low: 54 ~ 330 high: 475 ~ 2875 60Hz Low: 65~400 High: 570~3450 50Hz Low: 54~330 High: 475~2875 60Hz Low: 65~400 High: 570~3450 Variable speed head 50Hz low: 50 ~ 415 high: 415 ~ 3600 60Hz Low: 60~500 High: 500~4300 50Hz Low: 50~415 High: 415~3600 60Hz Low: 60 ~ 500 High: 500 ~ 4300 Fast X axis 2000 mm / rpm 3750 mm / rpm Increase motor speed 430 mm / rev 430 mm / rev Overall height 2380 mm (93.7 ") 2380 mm (93.7") Overall Depth 2120 mm (83.464 ") 2120 mm (83.464") Overall width 1790 mm (70.472 ") 1790 mm (70.472") Net weight 1800Kgs (3938lbs) 1800Kgs (3938lbs)
