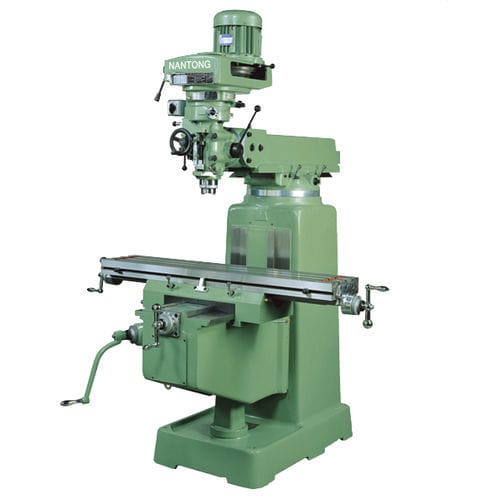

3-axis milling machine YJ-XW6332

verticalvariable speed

Table Size 230x1067mm (9 "x42") T-slot for table (Q size x size) 3x16mm (3x0.629 ") Car 682 mm (26.85 ") Ram travel 390 mm (15.354 ") Quil Travel 127 mm (5 ") Spindle taper NST # 30 / R8 (option NST # 40) Spindle to desktop nose 34 ~ 440mm (1-3 / 8 "~ 17-3 / 8") Spindle center to column 154 ~ 544 mm (6 "~ 21.4") Turned 360 ゜ on the turntable Head rotation (R & L) +/- 45 ゜ Head tilt (up and down) +/- 45 X-axis motor options: power supply Lift motor zero Quail feed 0.04 ~ 0.08 ~ 0.14mm / rpm (0.0015 "~ 0.003" ~ 0.006 ") Spindle speed step 50Hz low: 66 ~ 270 Hi: 550 ~ 2270 60Hz Low: 80~325 Hi: 660~2720 Variable speed head 50Hz Low: 50 ~ 420 Hi: 420 ~ 3750 60Hz Low: 60~500 Hi: 500~4500 X-axis fast zero Increase motor speed zero Total height 2105 mm (82.874 ") Overall Depth 1618 mm (63.7 ") Total width 1497 mm (58.937 ") Net weight 950Kgs (2200lbs)
