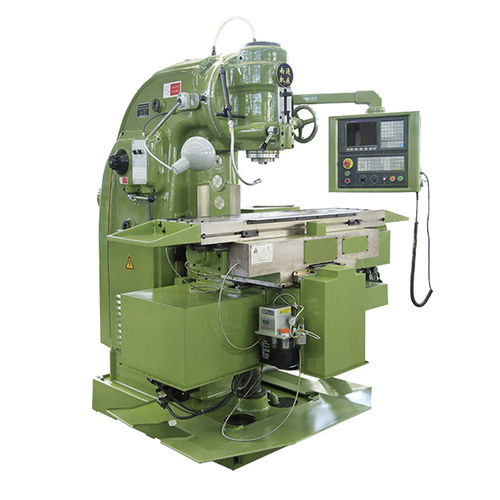

3-axis CNC milling machine YJ-XK5040vertical
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- X travel
880 mm, 900 mm
(34.65 in, 35.43 in)- Y travel
300 mm, 315 mm
(11.81 in, 12.4 in)- Z travel
365 mm, 385 mm
(14.37 in, 15.16 in)- Rotational speed
Max.: 1,500 rpm
(9,425 rad.min-1)Min.: 30 rpm
(188 rad.min-1)- Power
11 kW
(14.96 hp)- Weight
4,250 kg
(9,369.65 lb)- Overall length
2,556 mm
(100.6 in)- Overall width
2,159 mm
(85 in)- Overall height
2,258 mm
(88.9 in)
Description
Workbench area
mm
400 × 1700
T-slot number and width
mm
3 × 18
T-slot spacing
mm
90
Spindle hole taper
7:24
Spindle aperture
mm
29
Spindle axial movement distance
mm
85
Cooling pump motor
kw
0.125
Feed the motor
kw
3
