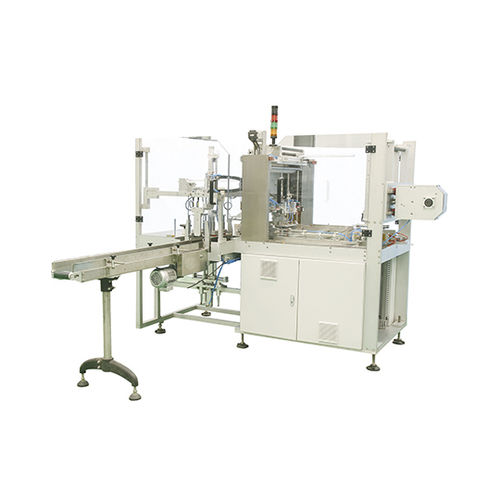

Horizontal wrapping machine SWM series

automaticfor cosmetic productsfor pharmaceutical products

film wrapping machine is used to wrap medicine, soap, toothpaste and cosmetics. It uses BOPP or PVS to wrap single product or multi products. It will convey products, stack, horizontal sealing, and side sealing and then output finished products. Working Principle 1- Products sent to the feed conveyor, then move forward by batch with the belt. 2- Products are pushed to the main pusher position with feeding pusher 3- Products are filmed with the pushing power of the main pusher 4- Products are horizontally sealed, left and right corner flapped, up and bottom corner flapped and heat-sealed 5- At last, the product is pushed out one by one at the end of the machine Features with specific design, this machine can wrap single product and multi products; Products can stand in a line or stack in several layers. Blade: Use customized silicone rubber strip for film pre-pressing device and equipped with serrated blade, which can guarantee the one-time cutting. Film feeding: Film feeding motor use servo motor to drive and use synchronous belt for transmission, which ensure the accuracy and sta-bility of film feeding. Surface of film roller use Teflon, which does not attach the film and easy to clean. Up folding plate and back pressing plate: Applied with four cylinders, finish up folding film by the séquence actions of the four cylinder; the back pressing plate is con-trolled by air cylinder with spring.
