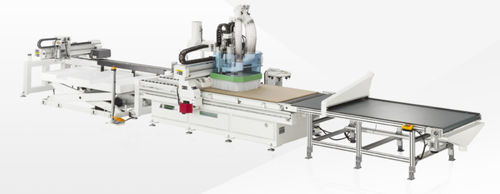

Panel cutting machine NCG2812L
CNClabelingboring

Panel cutting machine - NCG2812L - Nanxing Machinery - CNC / labeling / boring
Panel cutting machine - NCG2812L - Nanxing Machinery - CNC / labeling / boring
Panel cutting machine - NCG2812L - Nanxing Machinery - CNC / labeling / boring - image - 2
Panel cutting machine - NCG2812L - Nanxing Machinery - CNC / labeling / boring - image - 3
Panel cutting machine - NCG2812L - Nanxing Machinery - CNC / labeling / boring - image - 4
Panel cutting machine - NCG2812L - Nanxing Machinery - CNC / labeling / boring - image - 5
Panel cutting machine - NCG2812L - Nanxing Machinery - CNC / labeling / boring - image - 6
Add to favorites
Compare this product


Characteristics

Product handled
panel
Control type
CNC
Associated function
labeling, boring
Workpiece loading
automated loading/unloading
Other characteristics
automatic
Cutting speed

20,000 mm/min, 80,000 mm/min
(13.123 in/s, 52.493 in/s)

Overall length

11,000 mm, 12,500 mm
(433 in, 492 in)

Overall width

2,600 mm, 4,500 mm
(102 in, 177 in)

Height

2,500 mm
(98 in)

Weight

5,500 kg, 7,000 kg
(12,125.42 lb, 15,432.36 lb)

Description

NCG2812L is a CNC machine made flexibly easy for cutting and boring, it is usable for customized orders by furniture companies. The machine has completed with auto loading, labeling, top side boring, grooving, cutting panel in line and shape, and unloading. This means the combination of automation, intelligence, and IT in production. Open port is equipped to link with furniture software in following the preset data for processing work. With professional Nesting software (option) makes the processing much optimized, under controlled, well managed, design intended, and IT included for easy operation. With this type of processing work can save labor force but without compromise in accuracy and efficiency. • Auto labeling offers max convenience of InfoTech production; • Powerful 12kw Italian air cooling spindle +one boring block; • The automatic servo tool change magazine with 12-slots, no need to change tool manually offers maximum operation convenience, saves labor; • SYNTEC control system , combination of automation, Nanxing Smartech, and Nanxing Infotech in production; open port equipped to link with various international nesting software making processing much optimized, under controlled, well managed, design intended, and data networking included for easy operation; • Neat and strong vacuum device mounted on beam moving up and down to clean saw dust on working table
